Top quality KTAG V2.23 V7.020

Top quality KTAG V2.23 V7.020

Masterversion

Price：$189.00/Set
Wholesale Price:

5

$183.00

10

$179.00

15

$175.00
MOQ：1
Product Code：E00103
Weight：1.500kilogram
gifts for buying:0 points

Quantity：-+

Buy now Add to cart　

Description

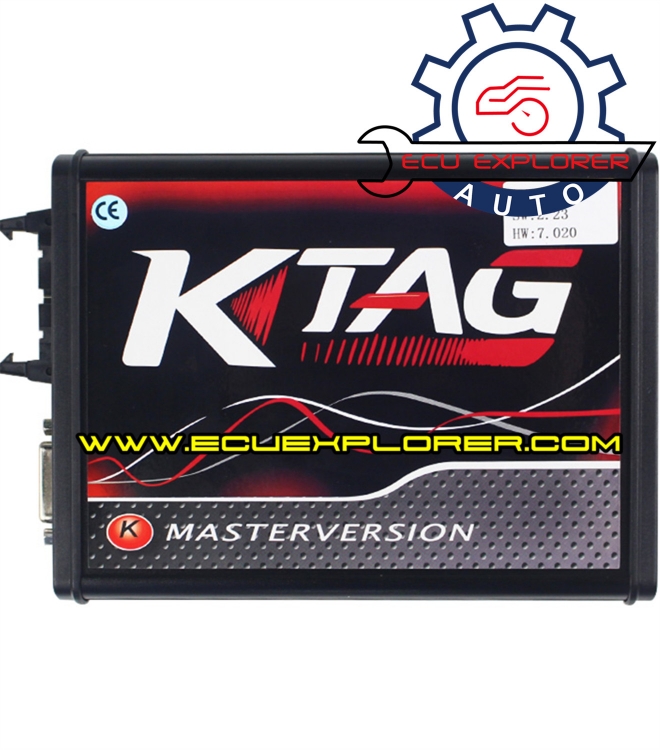

KTAG V2.23 V7.020

Can connect into internet.
No Tokens Limitation, No need reset button, no need software set tokens.
Update: By CD. If just buy main unit,  can give link to download. ( can give link to update software and ECU TITIANIUM software )

Top Reasons to Get Ktag K-tag:
1.Newest Hardware:V7.020  Software Version: 2.23
firmware-ktag-v7.020-ecu-programming-tool-pic-5
2.No Tokens Limitation, No reset button need
3  .KTAG 7.020 can be used online
4. Master Version ECU Programming Tool
5.  Require System: XP/WIN7/WIN8/WIN10
6.  Languages: Italian Deutsch English French Portuguese Spanish
7.  Support BDM Function Well, No Checksum Error
8.  Support both Car & Truck ECU Programming
9.Add New File type (FENDT/JCB/VALTRA TRACTOR BOSCH EDC17CV41 SISU ENGINE CAN
10.  Update: By CD or Download link. (I can give you a link to download newest version of ktag software)
ktag-v7.020-ecu-programming-tool-without-tokens-limitation-pic-1ktag-v7.020-ecu-programming-tool-without-tokens-limitation-pic-2
11.KTAG V7.020 add a cable with GPT Functions.
( GPT is new password algo cryptography that is implemented in new Tricore microcontrollers. our KTAG v7.020 can easily read and decrypt the secret password and it automatically unlocks/unprotects the Tricore sectors so it can read and write both Flash and Eeprom )ktag18
Cables From Left to Right:
ktag-v7.020-ecu-programming-tool-without-tokens-limitation-pic-6
1.GREEN-CAN L
2.ORANGE-VKEY
3.YELLOW-K LINE
4.ORANGE-VKEY
5. RED-VECU
6.BLACK-GND
7.BLACK-GND
8.PURPLE-VPP
9.RED-VECU
10.WHITE-CAN H

Ktag KTAG ECU Programmer Description:

K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components,have merged JTag, Motorola BDM/Nexus and Bootloader Mitsubish/Infineon Tricore/ST communication lines into a singleproduct.
KTAG ECU Programming Tool is designed entirely around the needs of our customers to be more responsive andreliable. A true champion of innovation, introduces another brand new novelty to Alientech world: for J-Tag communication for Asian vehicles.
works in perfect harmony. Learn how to use takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.
Unlike many ECU programming tools, with k tag you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported.

Just as the full range of Alientech programmers, It is available both in Master and Slave version. This way, Slave user can rely on the larger network of Master in the chiptuning field.

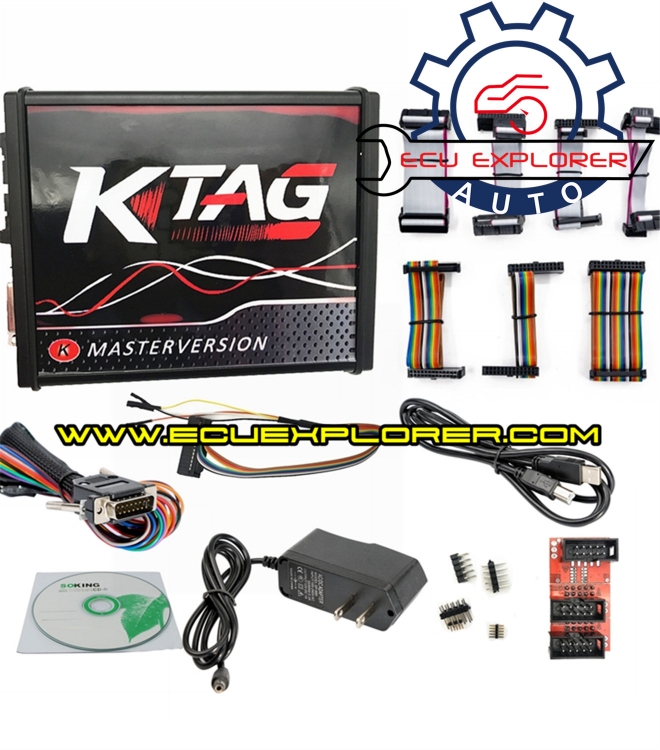

Package List:
1 x KTAG 7.020 Main Unit
1 x 144300T 104
1 x 144300T 103
1 x 144300T 101
1 x 144300T 106
1 x 144300T 102
1 x 144300T 105
1 x 144300T 100
3 x Chips Inside
1 x Multi-Color Cable
1 x USB Cable
1 x Power Adapter
1 x CD
