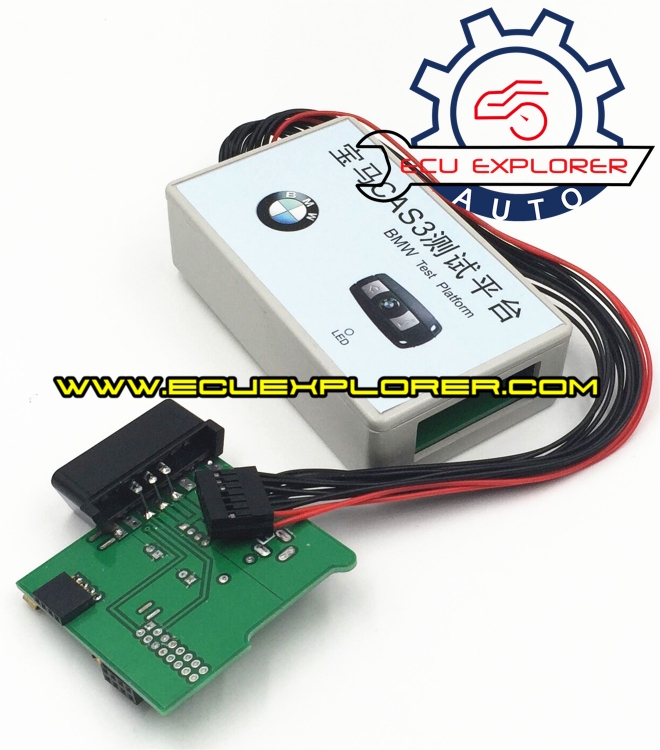

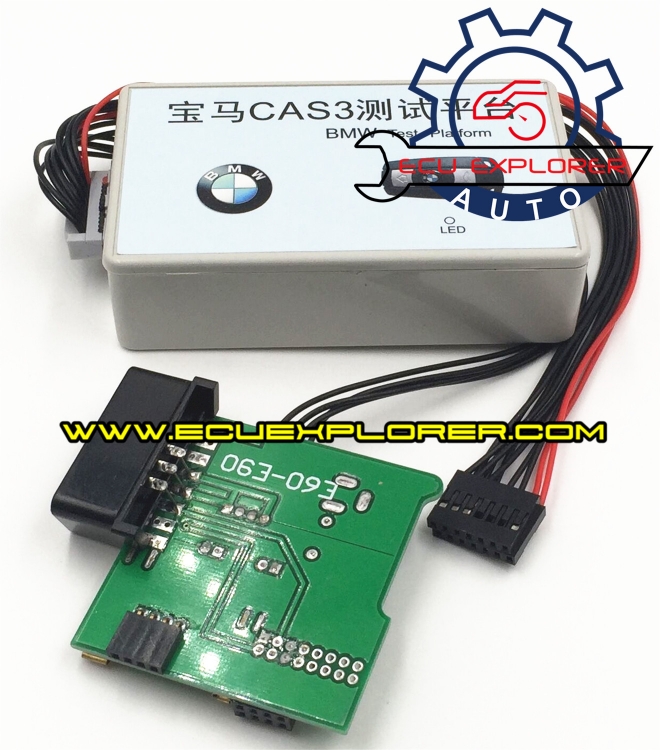

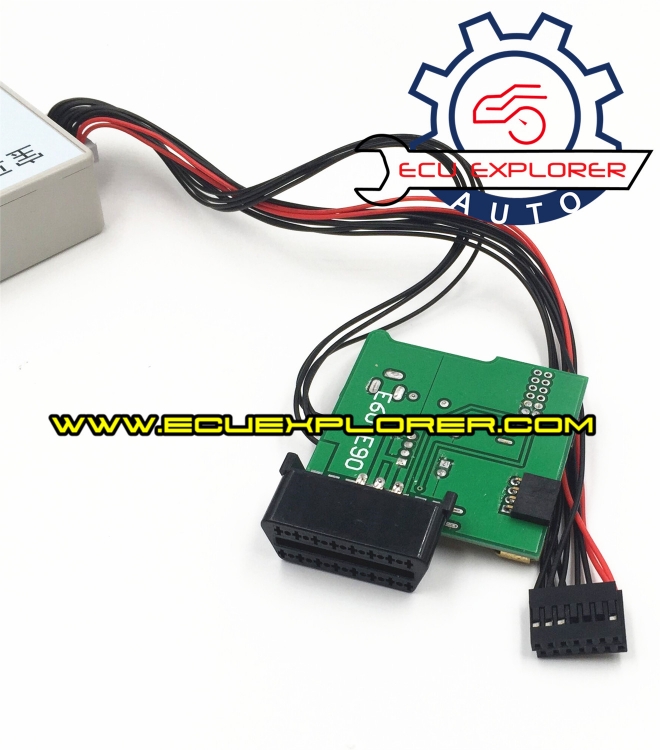

BMW CAS Test Platform is very suitable for repairman and training material.
1. Connect and test FOR BMW CAS3
2. Connect and test BMW CAS2
3. Note: the red cable of CAS2 / CAS3 should be plugged into the first pin of socket.
4. After the 12V power is connected, the power light ON and the LED light of the CAS test platform
will continuously fast flash once a second, it indicates the CAS CPU work well, if the LED light not ON,
it indicates CAS is abnormal and need to repair or change.
5. Insert FOR BMW key into CAS test platform mainframe and you will hear buzzer and see the CAS
power adapter green indicator ON, it indicates the key and the CAS work well; otherwise
it indicates the key is broken or the key doesn't program successfully.
